Tokistar Exhibitor

A specialised wet-area festoon lighting system widely used in amusement parks, shopping centres, and promenades

Available with cool white, warm white and coloured LEDs at standard spacing from 150mm  to 600mm combined with clear, frosted or colour globes.

The virtual incandescent LEDs used with pear-drop globes provide an old-time fairground look.

Operates from 24Vac supply and capable of running up to 150m in a single string.  Mount options for catenary wires, surface, panel or made up into channel systems.

Description

Features

  • Manufacturer: Tokistar
  • Product Type: Festoon Lighting System
  • General Product Code: EX**
  • Light Sources: White & Coloured LED or Xenon
  • Wattage Option: Standard 0.48W, Ultra Bright 1.8W, Xenon 7.5W
  • Lamp Voltage: 24V AC
  • Colour Options (CCT / Colour): 2000K, 2400K, 2500K, 5500K, 2700K, 3000K, 4000K, Blue, Orange, Green, Purple, Red, Yellow-Green
  • Lamp Spacing choices: 150mm, 300mm, 450mm, 600mm or Custom
  • Supply Voltage: 23Vac
  • Cover Globes sizes: 60mm Sphere, 45mm Sphere or 45mm Teardrop
  • Cover Globes Colours: 60mm: Clear, Frosted, Green, Amber, Blue, Red, Violet.  45mm: Clear or Frosted
  • Power supplies: 24Vac Transformers – UK versions differ from those shown in brochure – Please enquire

Exhibitor Technical Drawings

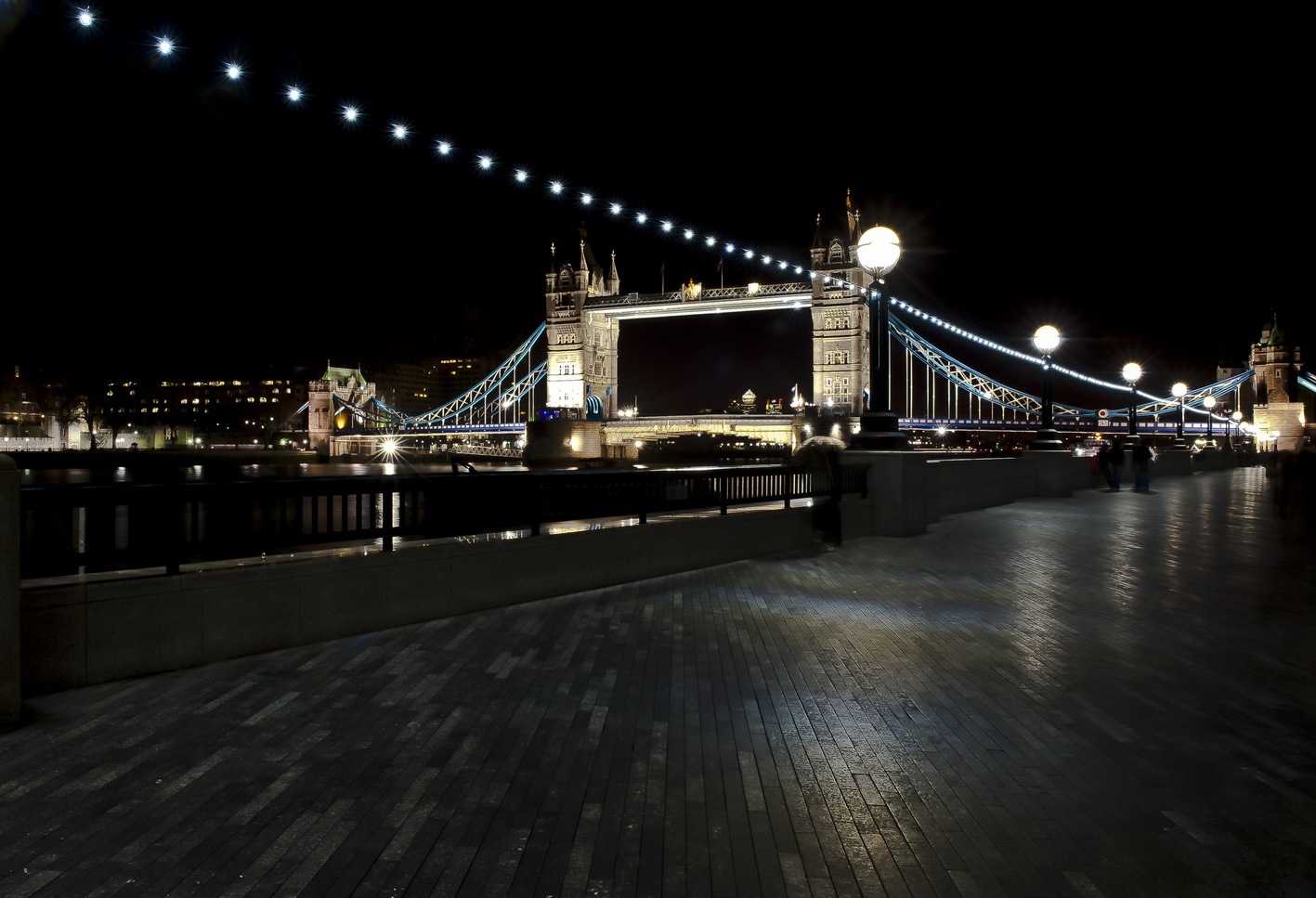

Tokistar Installation

Name of Project: More London

Location: London

Lighting Designer: GIA Equation

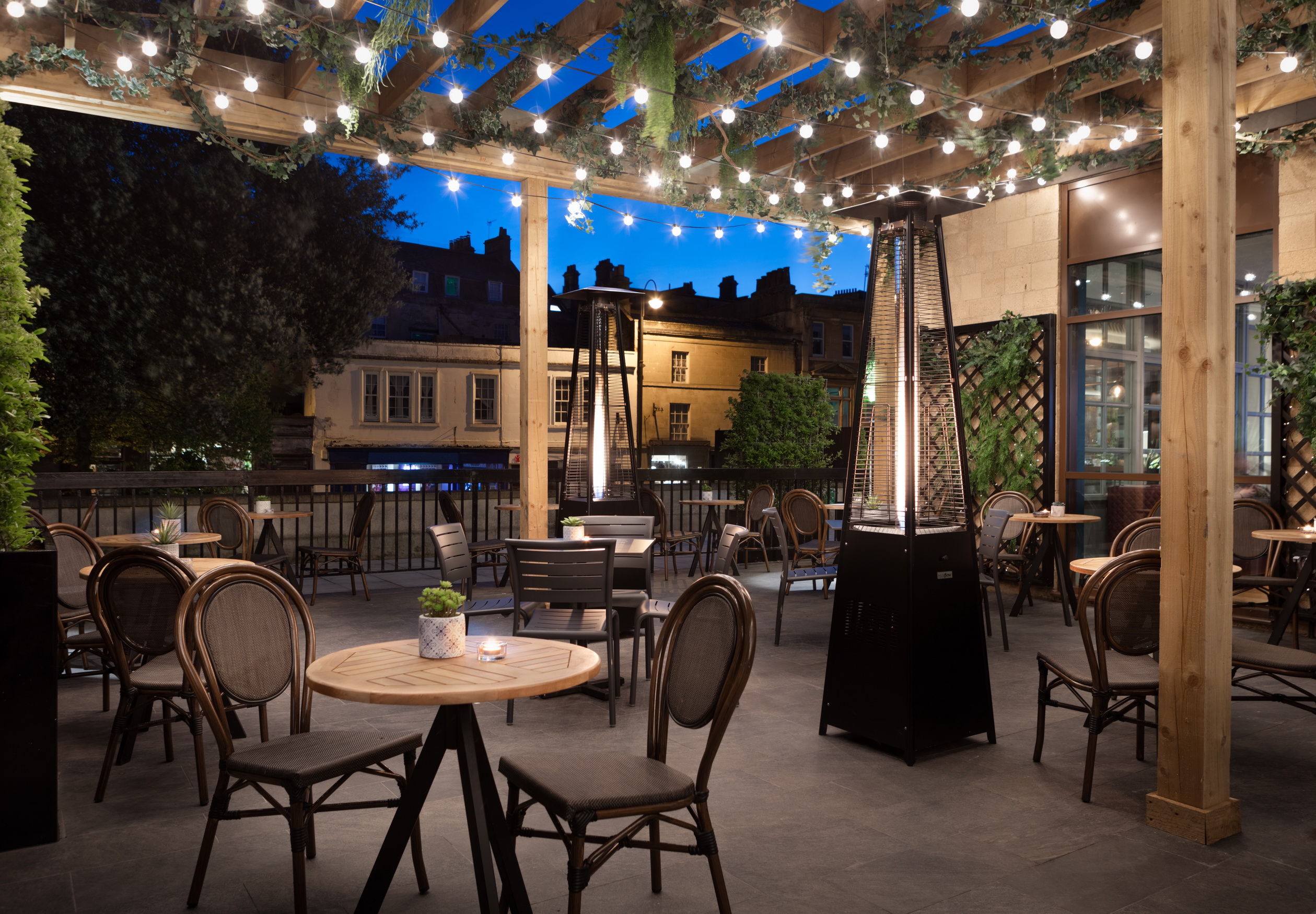

Tokistar Installation

Name of Project: Hilton Hotel

Location: Bath

Downloads

Follow link to Tokistar Website for further details & downloads

Brochure

Install sheet

Tokistar Website

Photometric Files

Tokistar Exhibitor product codes

EX** – [Spacing Code] – [Source Code] – [Globe Code] – [Globe Colour Code] – [Length Code]

EXBK-12-UB-G19-F-21900

Exhibitor festoon black cable with Ultrabright 2400K LEDs at 300mm (12″) spacing and 60mm spherical frosted globes, 21900mm (21.9m) length.

Principle variants, see Specification Sheets for full details.

ARTICLE NUMBERDESCRIPTION
EXBKTokistar Exhibitor Festoon with Black Cable
EXCTokistar Exhibitor Festoon in Aluminium Channel
EXWHTokistar Exhibitor Festoon with White Cable
EX-PENDTokistar Exhibitor Pendant with Black Cable (omit spacing and length codes)

Product Parameter codes

Spacing Code150mm 6" [6], 300mm 12" [12], 450mm 18" [18], 600mm 24" [24]
Source Code 0.48W LED2500K [WW], 5500K [WH], Blue [BL]. Amber [AM], Green [GR], Ornge [OR], Purple [PL], Red [RD]. Yellow-Green [YG]
Source Code 1.8W LEDUltrabright 2000K [UBLW] or 2400K [UB], Virtual Incandescent 2000K [VILW] or 2400K [VI],
Source Code Xenon2500K 7.5W [124]
Globe Code60mm Sphere [G19], 45mm Sphere [G14] or 45mm Teardrop [S14]
Globe Colour CodeClear [C], Frosted [F], Green [G], Amber [A], Blue [B], Red [R], Purple [P]
Length CodeMultiple of spacing in mm
